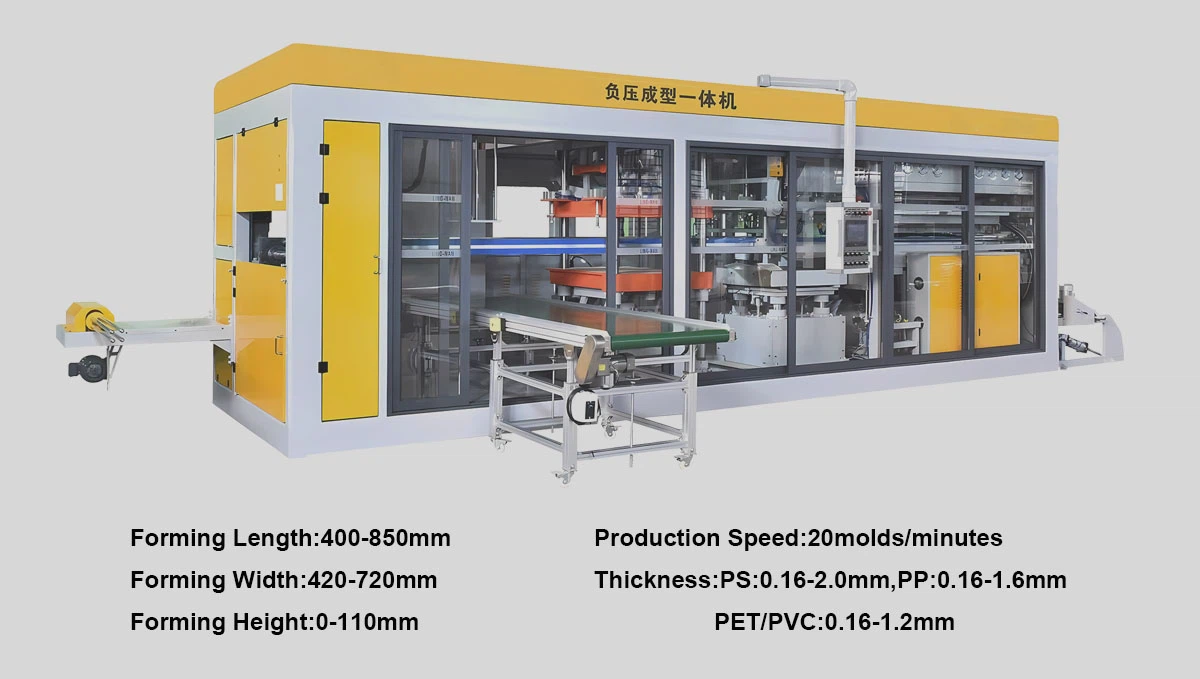

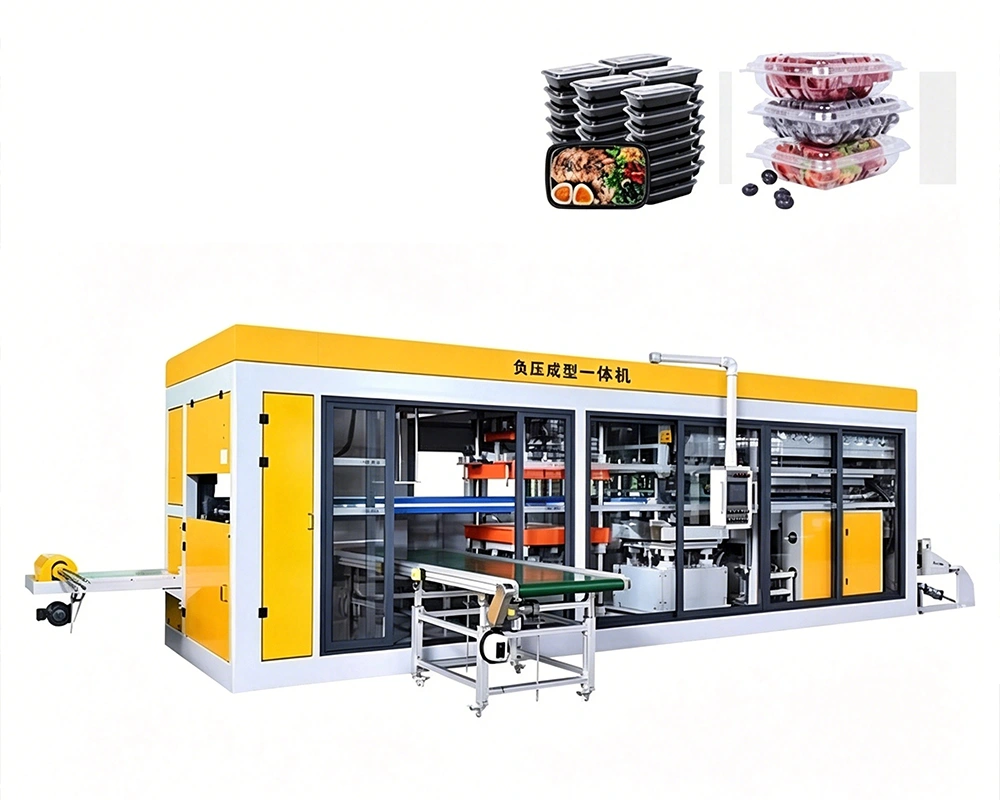

NEGATIVE PRESSURE FORMING MACHINE PLASTIC VACUUM FORMING MACHINE

Item	Specifications	Remarks
Forming Length	400–850 mm	-
Forming Width	420–720 mm	-
Forming Height	0–110 mm	-
Material Thickness Range	PS: 0.16–2.0 mmPP: 0.16–1.6 mmPET/PVC: 0.16–1.2 mm	-
Power Supply	380V, 3N, 50Hz	Three-phase four-wire, 50Hz
Heating Furnace Rated Power	30 kW	Max 40–50 kW
Production Speed	3 seconds/mold	20 molds/minute
Max Punching Pressure	50 tons	-
Max Cutting Pressure	50 tons	-
Molding Machine Max Withstand Pressure	55 tons	-
Heating Area	870 × 750 mm	84 heating bricks (upper/lower furnaces)

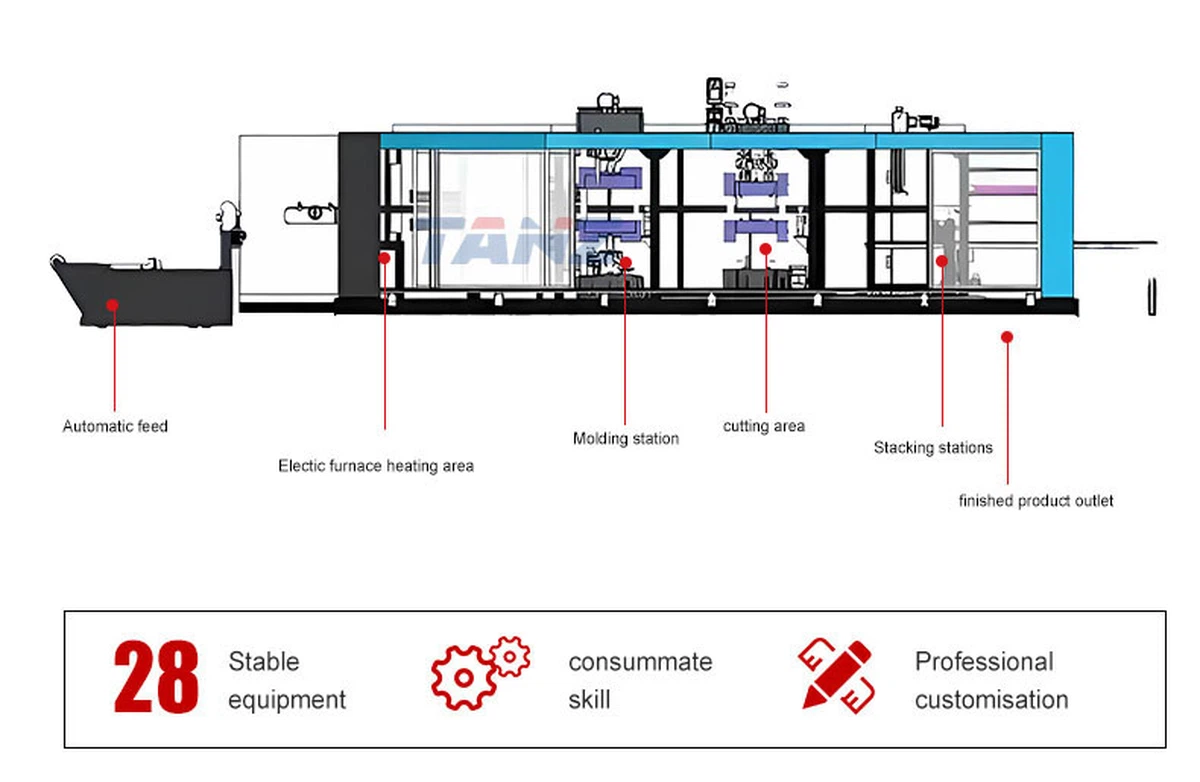

Main Machine Dimensions	6500 × 2150 × 2800 mm (L×W×H)	3 stations: forming, punching, stacking
Overall Machine Length	8800 mm	Includes host, feeder, and scrap winder
Total Machine Weight	9 tons	Includes host, feeder, and scrap winder

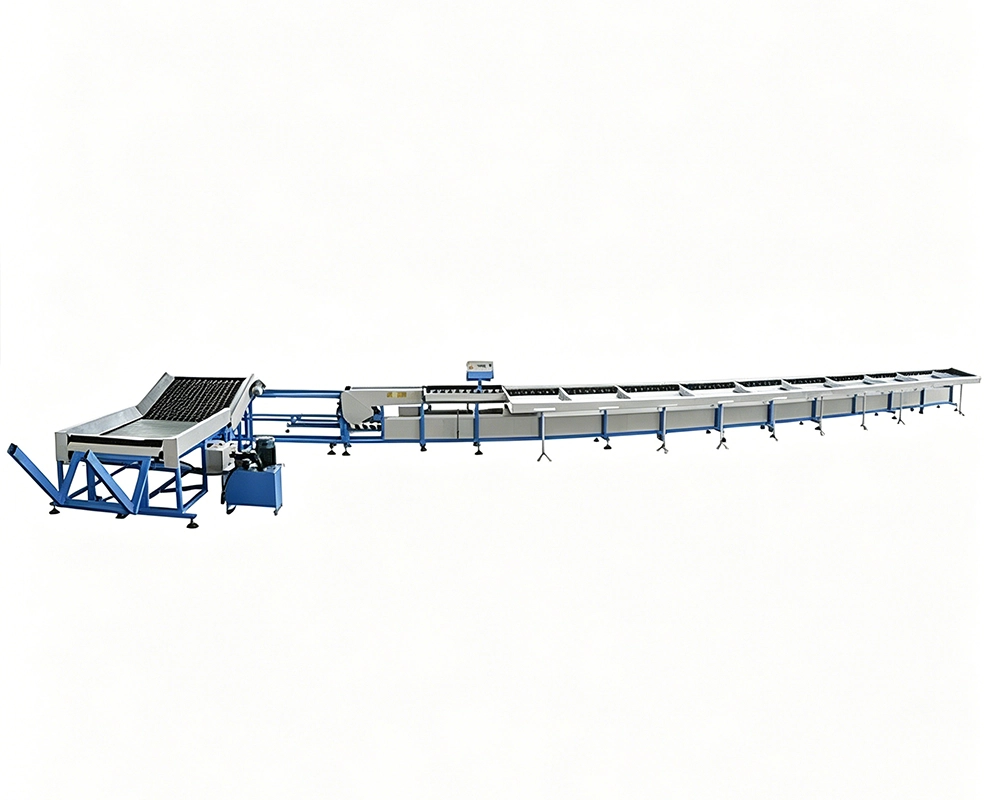

FRUIT WASHING WAXING AND GRADING MACHINE
