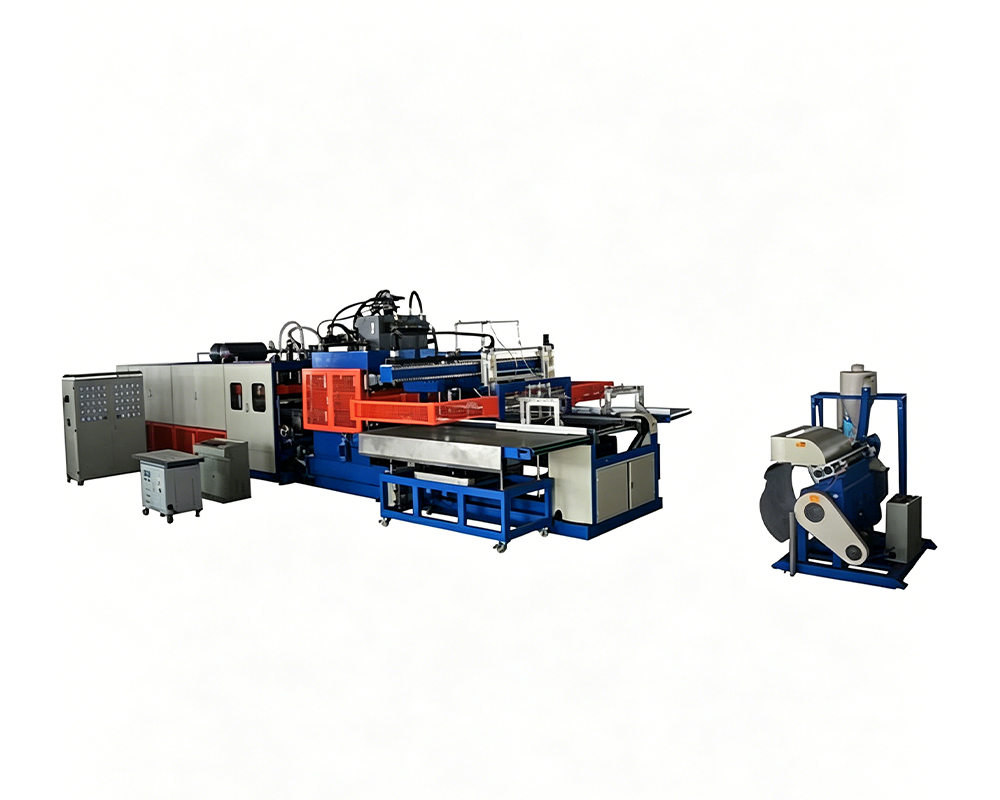

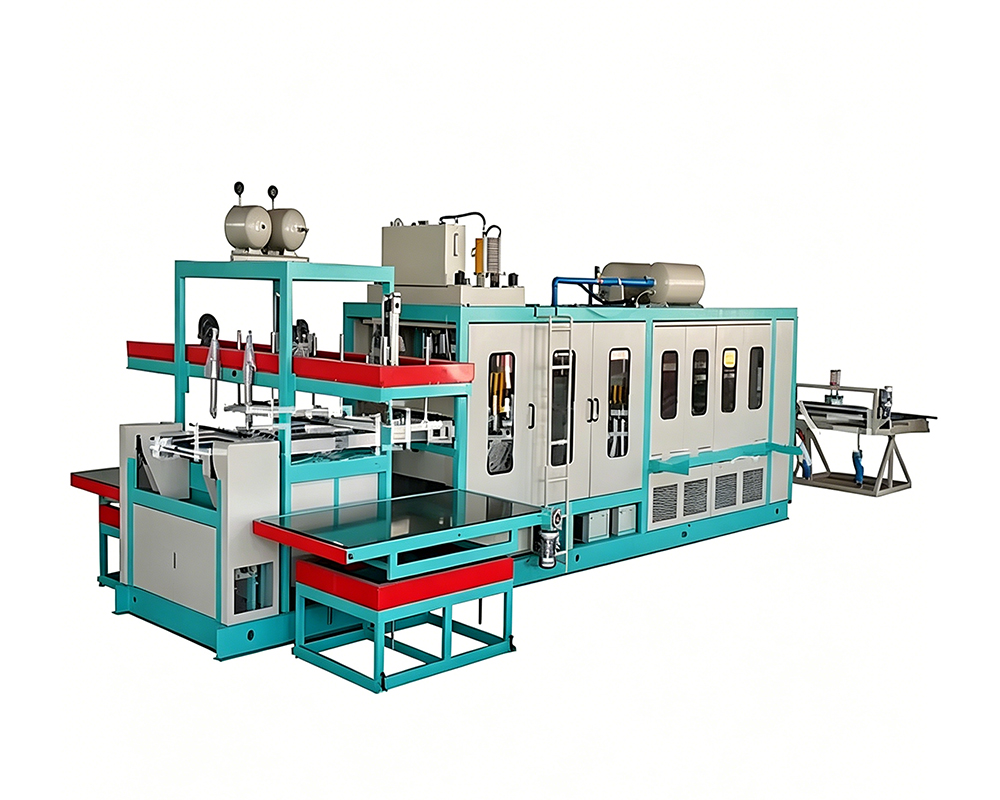

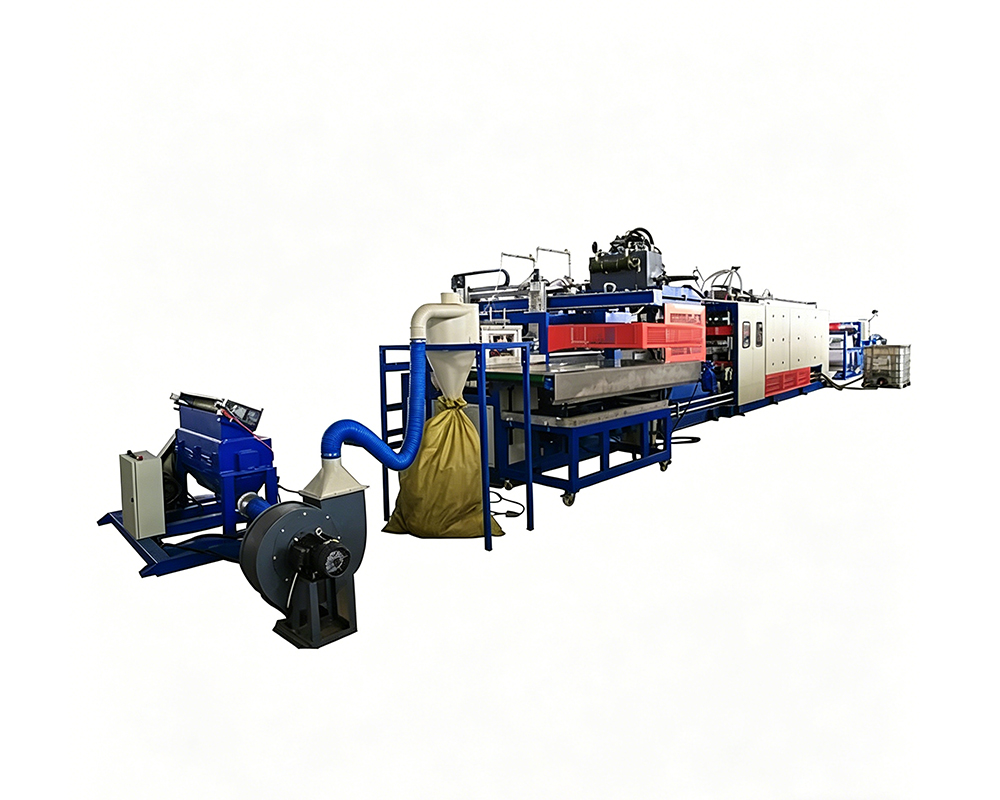

PS AND PVC FOAM MACHINE

Introduction

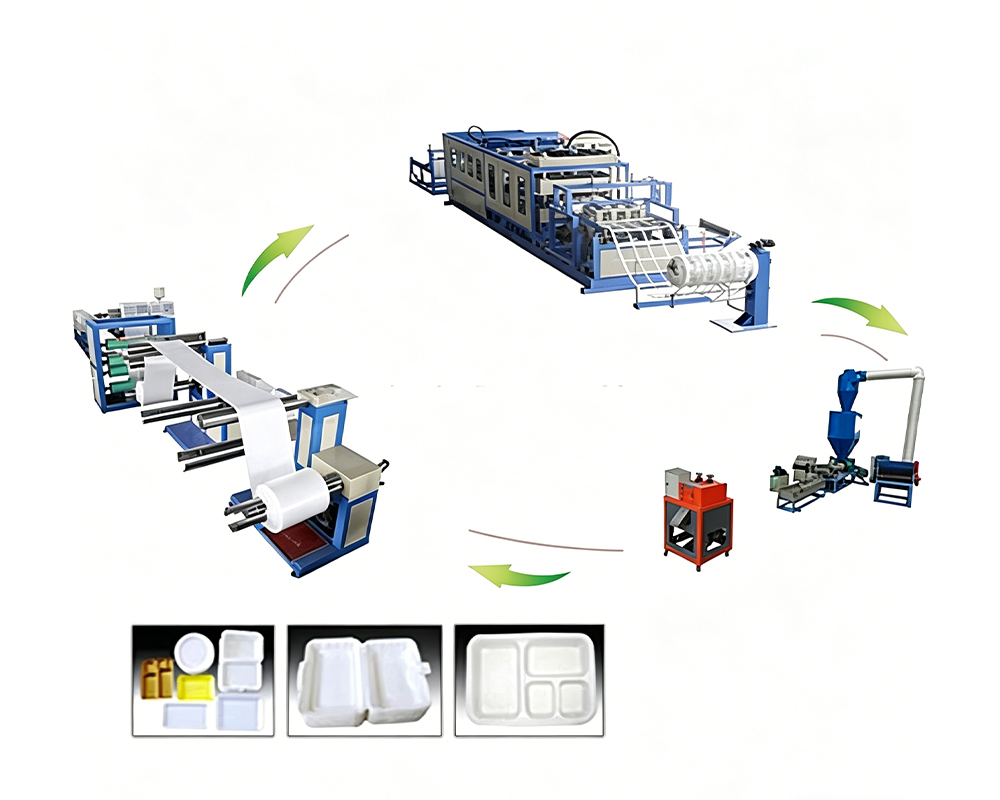

This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming punching machine. Vacuum pump.PLC.the main electrical components, made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material,it can produce PSP, PVC, PE,PP,PET,HIPES etc all kinds of packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile,etc. The biggest advantage is forming cutting integration, reduce work link, produce the product can be stacked directly collect, this will greatly save time reduce the intensity of work and greatly saves labor.

Parameters

Type
RN-YTA60–110RN-YTA100–110RN-YTA110–125RN-YTA110–140
Forming Areamm600×11001000×11001100×12501100×1400
Forming Depthmm0–600–600–600–60
Forming Pressuret15202535
EfficiencyCycle/min12121212
Installed Powerkw70100120200
Dimension (L×W×H)mm18000×4000×300022000×5000×300022000×5000×300024000×5000×3000
Weightt12182022
