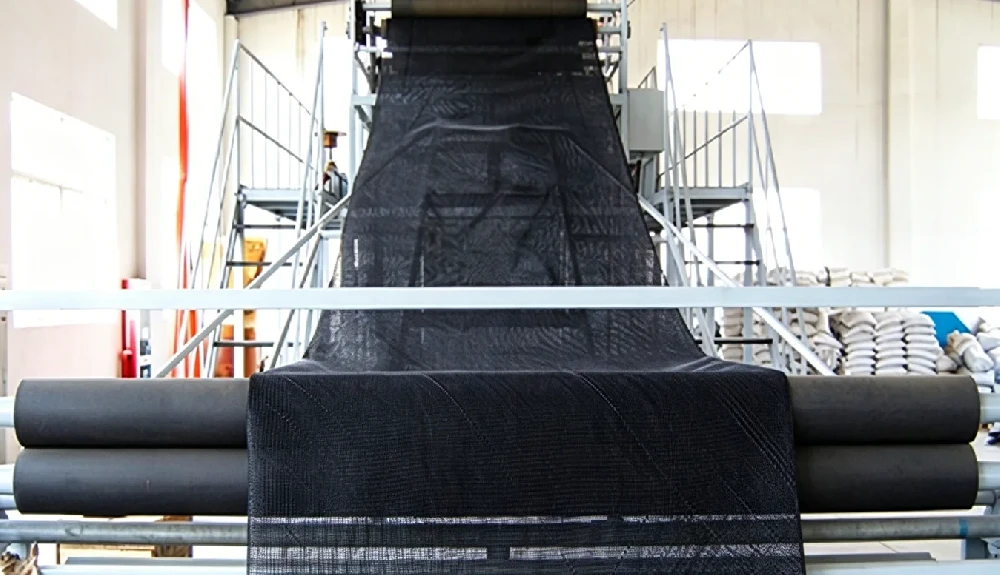

3D DRAINAGE NET PRODUCTION LINE

Introduction

3D drainage net production line The drainage network is made of high-density polyethylene, and the ribs are extruded through a special machine head. The three ribs are arranged at a certain distance and angle to form a spatial structure with drainage guide grooves. The drainage channel formed between the three-layer ribs is not easy to deform under high load, which can prevent the geotextile from embedding into the geonet core and ensure smooth drainage

Parameters

Parameter	Specification 1	Specification 2	Specification 3
Product Width	2000–2500 mm	3000–4300 mm	4800–5000 mm
Product Thickness	4.5–9 mm (all specifications)	4.5–9 mm (all specifications)	4.5–9 mm (all specifications)
Production Capacity	100–150 kg/h	300–500 kg/h	400–500 kg/h
Installed Power Capacity	110 kW	200 kW	360 kW
Overall Dimensions (L×W×H)	18000 × 5000 × 5500 mm	22000 × 6000 × 6500 mm	24000 × 6500 × 7000 mm
