PE FOAM SHEET LAMINATION AND BONDING MACHINE (XPE Thickening And Laminating)-EPE FOAM MACHINE -

PE FOAM SHEET LAMINATION AND BONDING MACHINE (XPE Thickening And Laminating)

Introduction

The laminating machine is mainly used for surface layer lamination of EPE foam sheet (film) and PE film or aluminum foil and paper; the laminating material is PE film, aluminized film, plastic coated paper, plastic coated cloth, etc. It can also be specially designed by the user. The embossed sheet is mainly used for floor film, floor heating, and making electronic instrument packaging bags.EPE thickening/bonding machine is a deep processing equipment for EPE foam sheet products. It is used for bonding/thickening of EPE foam sheet, which is to melt two or more layers of EPE foam sheet to increase the thickness. It can also be used for the bonding of OPP and coated woven bags and PE film.

Parameters

PE FOAM SHEET LAMINATION MACHINE

Parameter	Specification
Maximum Product Width	1500-2500 mm
Heating Method	Electric Drive Blower Heating
Total Power	45 kW
Laminating Velocity	7 ~ 15 m/min
Bonding Velocity	20 ~ 40 m/min

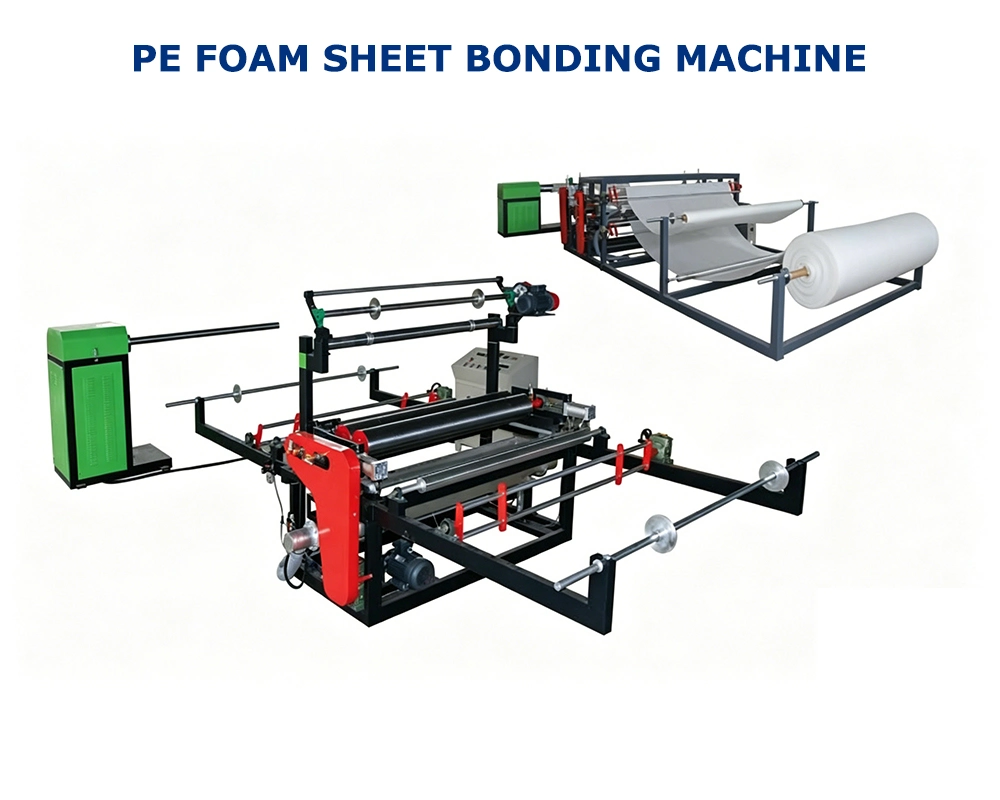

PE FOAM SHEET BONDING MACHINE

Model	Product Width (mm)	Heating Method	Main Motor Power (kW)	Installed Capacity (kW)	Machine Weight (t)	Dimension (L×W×H, m)
ZH1500	1300	Hot Air Heating	1.5	44	2	7.2×1.8×2.0
ZH1700	1500	Hot Air Heating	2.2	45	2.5	7.5×2.2×2.0
ZH2200	2000	Hot Air Heating	2.2	45	3	8×2.3×2.0
ZH3200	3000	Hot Air Heating	3	85	3.5	8×3.3×2.0
ZH4200	4000	Hot Air Heating	4	130	3.5	8×4.3×2.0

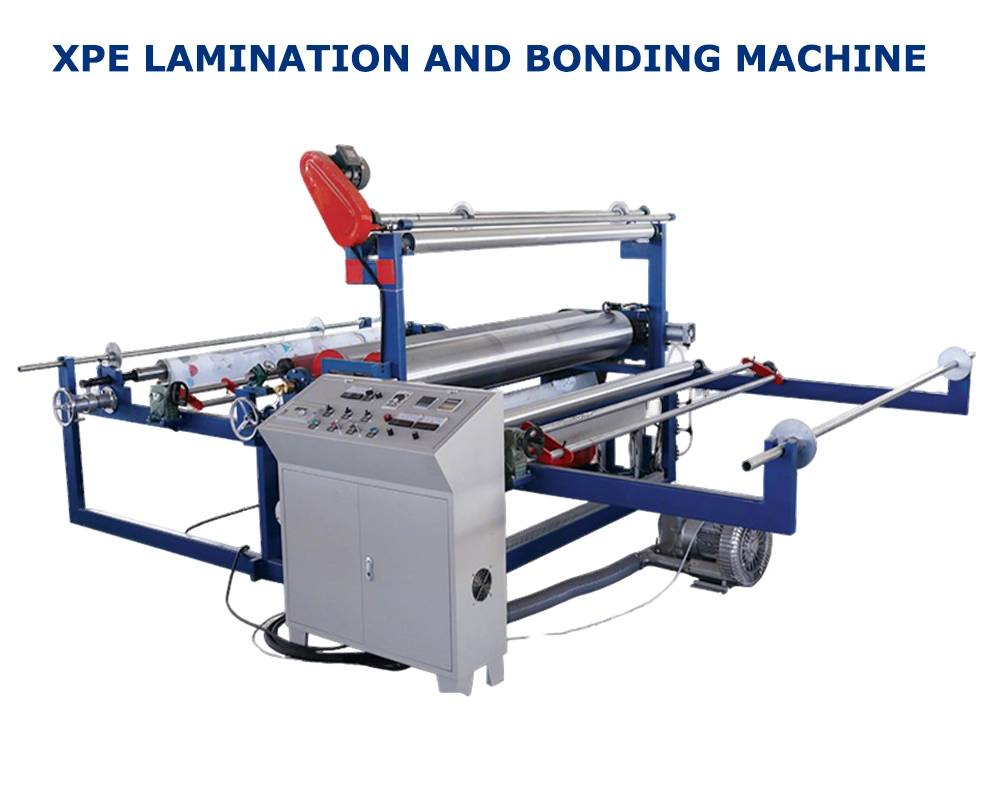

XPE LAMINATION AND BONDING MACHINE

Model	Product Width (mm)	Heating Method	Main Motor Power (kW)	Installed Capacity (kW)	Dimensions (L×W×H, m)
FM1400	1200	Stainless Steel Rod Electric Heating	1.5	12	4.2×2.3×1.5
FM1700	1500	Stainless Steel Rod Electric Heating	2.2	15	4.2×2.6×1.5
FM2200	2000	Stainless Steel Rod Electric Heating	3	20	4.2×3.1×1.5
FM3200	3000	Stainless Steel Rod Electric Heating	3	25	4.5×4.1×1.5
