PLASTIC SHEET EXTRUSION EQUPMENT FOR PP PS PET-OTHER MACHINE-

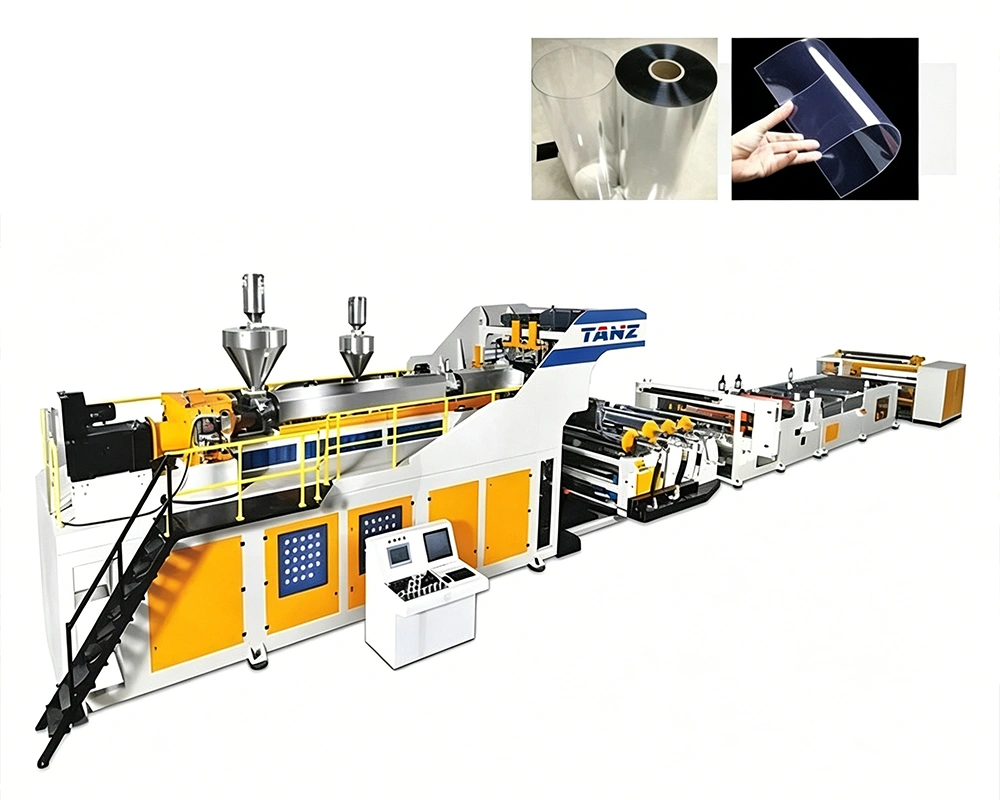

PLASTIC SHEET EXTRUSION EQUPMENT FOR PP PS PET

Introduction

The sheet extruder has the advantages of high flexibility, high production efficiency, stable product quality, and cost saving. It is mainly used for the production of plastic sheets. The extrusion die of this equipment adopts an internal plug-type die, which does not require downtime during production. You can adjust the width of the sheet.

Parameters

Model	Applicable Materials	Screw Form	Sheet Thickness (mm)	Sheet Width (mm)	Production Output (kg/h)	Installed Power (kW)
SWT-75	PET, PP, PS, PE, PLA	Building Block Type	0.15–2.0	≤ 800	450–550	315
SWT-85	PET, PP, PS, PE, PLA	Building Block Type	0.15–2.0	≤ 950	600–800	380
SWT-95	PET, PP, PS, PE, PLA	Building Block Type	0.15–2.0	≤ 950	1000–1200	495
SWT-105	PET, PP, PS, PE, PLA	Building Block Type	0.15–2.0	≤ 950	1200–1500	505
SWT85-1200	PET, PP, PS, PE, PLA	Building Block Type	0.15–2.0	≤ 950	400–500	275

Model	Applicable Materials	Screw Specifications	Sheet Thickness (mm)	Sheet Width (mm)	Max. Extrusion Output (kg/h)	Installed Capacity (kW)
TZNZ-100PP	PP, PS, PE	Φ100	0.2–2.0	≤ 850	PP: 350 / PS: 400	210
TZNZ-120PP	PP, PS, PE	Φ120	0.2–2.0	≤ 850	PP: 450 / PS: 550	250
TZNZ-150PP	PP, PS, PE	Φ150	0.2–2.0	≤ 850	PP: 800 / PS: 900	350
TZNZ-120/65PP	PP, PS, PE	Φ150	0.2–2.0	≤ 850	PP: 550 / PS: 600	460
TZNZ-150/70PP	PP, PS, PE	Φ150	0.2–2.0	≤ 850	PP: 850 / PS: 900	550

Introduction

PET twin-screw non-drying exhaust sheet extrusion line-Introduction

>> from Taiwan twin screw design, for the production line with more material back to feed fast, high output, low energy consumption, good plasticization and other advantages;

>> The screw adopts building block structure, multi-combination and wide application. It is not only adjusted in the production of PET, but also suitable for PLA whole biodegradable material and starch-based degradable material;

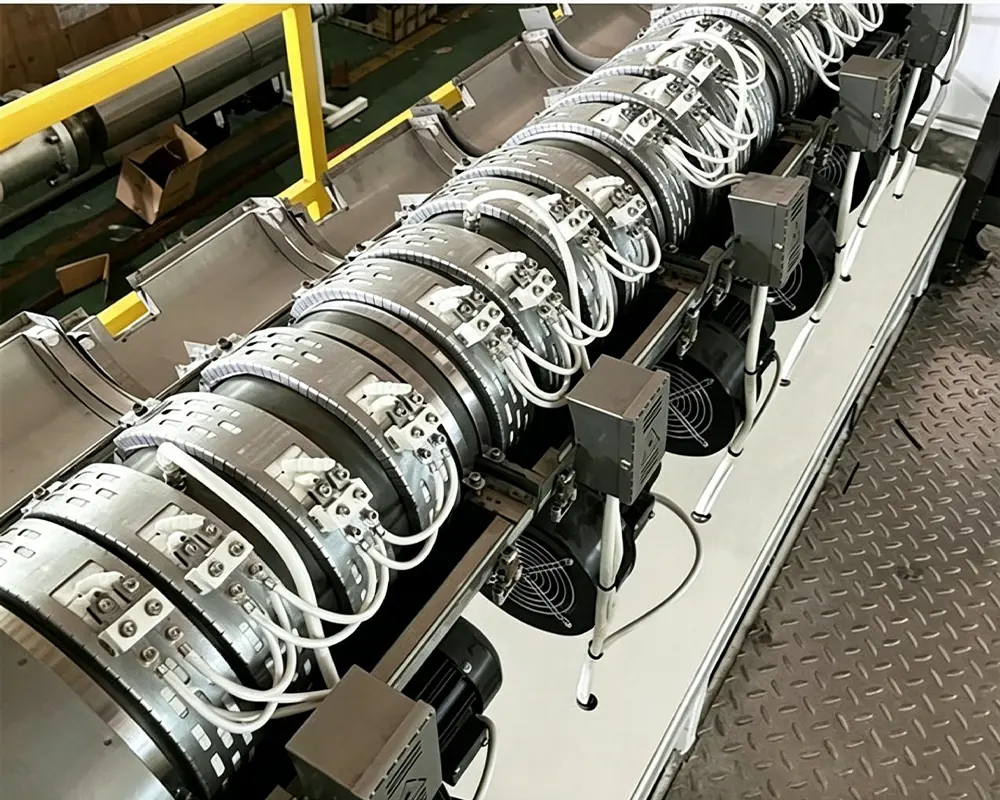

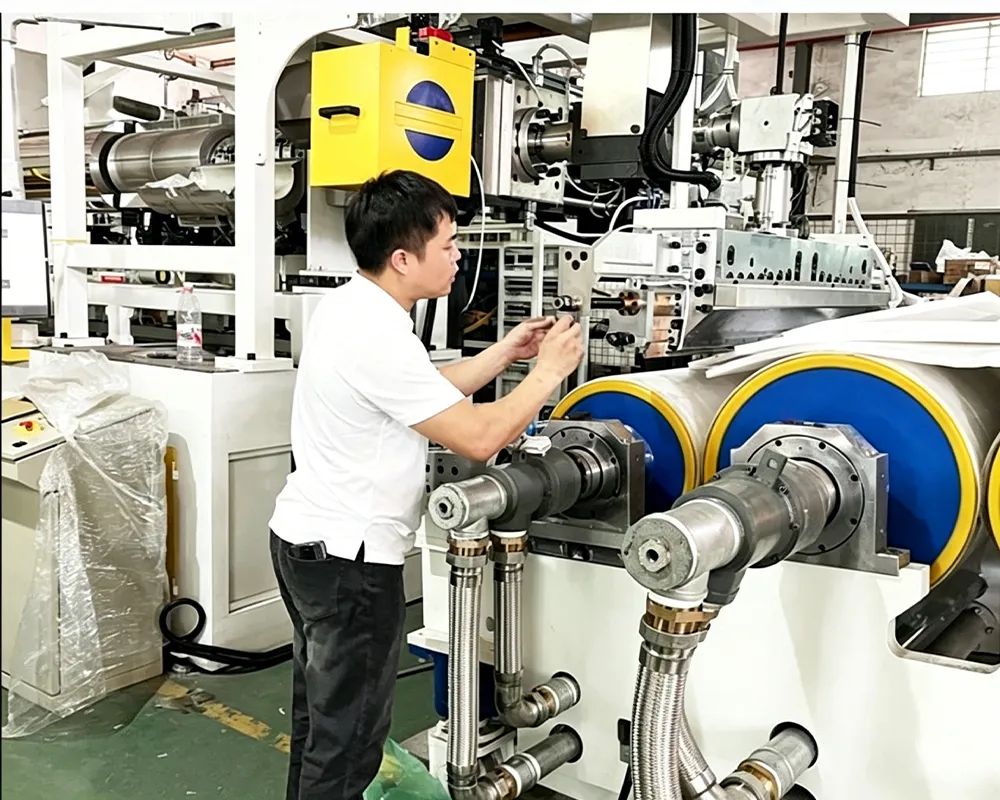

>> the barrel is provided with double vacuum exhaust to ensure the full discharge of water and gas. the symmetrical thin-walled roller improves the cooling efficiency while improving the production capacity and sheet quality;

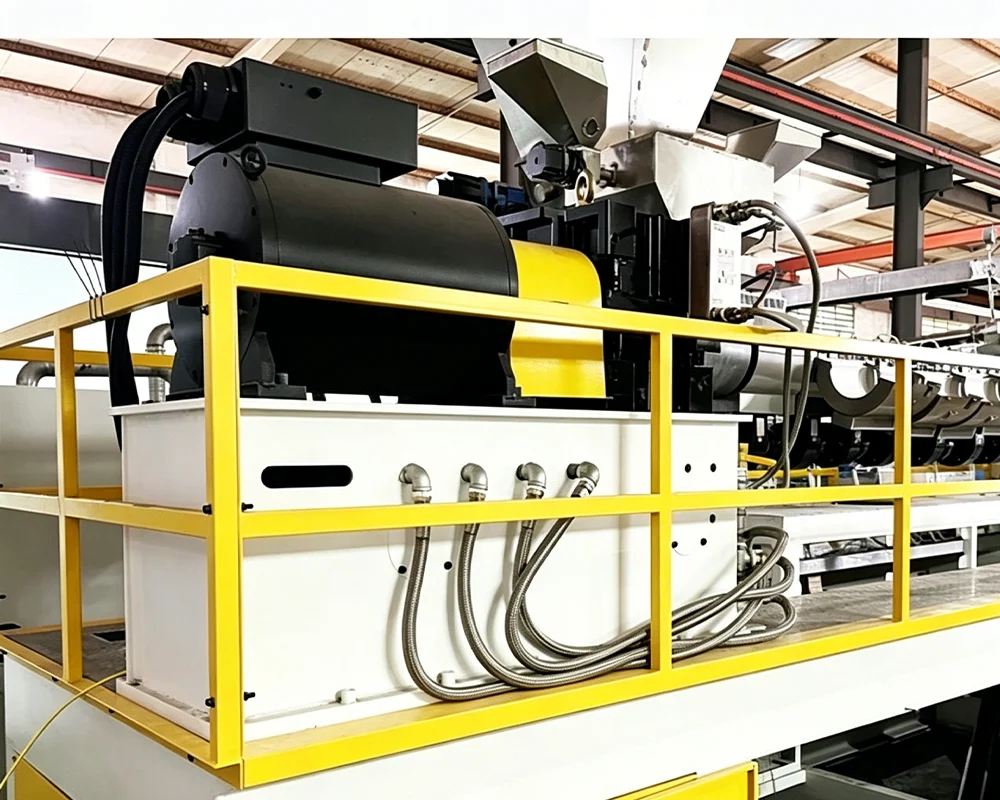

>> the host adopts vector closed-loop control system, equipped with melt metering pump quantitative voltage output, more stable operation;

>> The whole machine adopts PLC control to realize automatic control of parameter setting, data operation and feedback, alarm and other functions.
