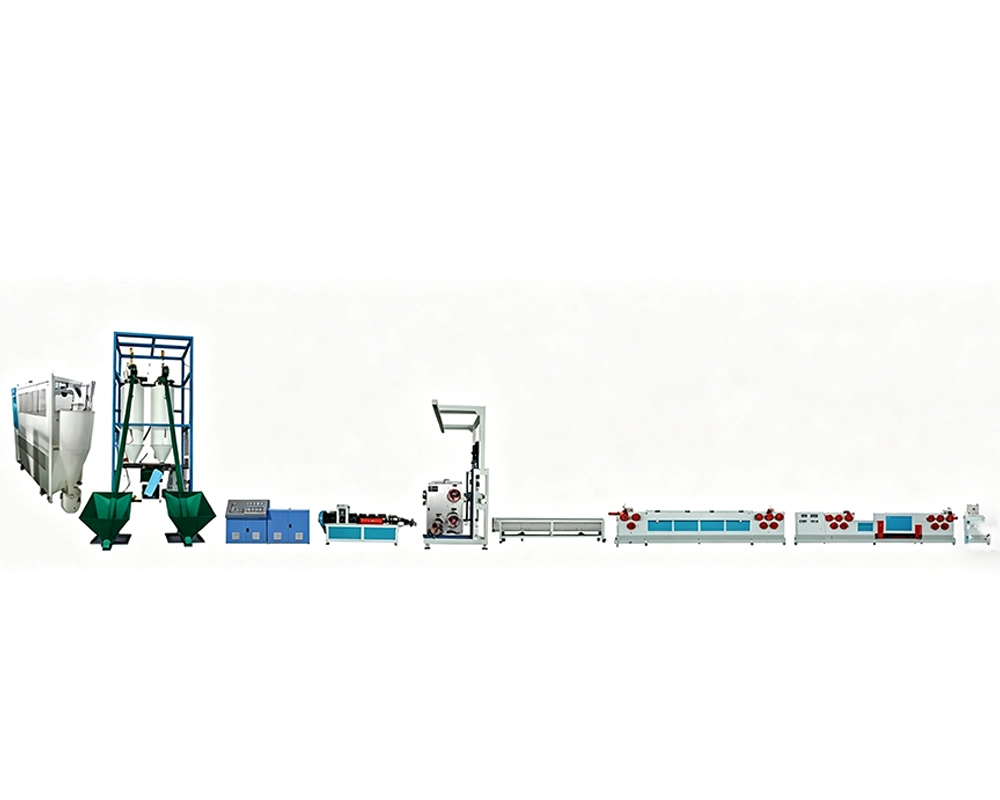

PP PET PACKING STRAP MACHINE

Introduction

1.Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs. 2.Process 100% recycled PP/PET bottle flakes or pellets. 3.Even plasticization and stable extrusion with PLC automatic control for the full line. 4.As per different requirements, changing a coating materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap. 5.Melt filter with two pistons with air venting design and back flushing. 6.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm 7.Workers: 2 -3 workers per shift, 12 hours/shift.

Parameters

Items	Specification 1	Specification 2	Specification 3	Specification 4
Output	150 kg/hr	300 kg/hr	500 kg/hr	800 kg/hr
Motor Power	55 KW	110 KW	160 KW	250 KW
Installation Power	280 KW	445 KW	635 KW	900 KW
Speed	120 m/min	120 m/min	120 m/min	120 m/min
Overall Size of Machine	32 × 4 × 5 m	46 × 5 × 5.5 m	60 × 6 × 6 m	60 × 6 × 6 m
Width of Strap	9–19 mm	9–32 mm	9–32 mm	9–32 mm
Width Tolerance	±0.45 mm (int. ±0.76 mm)	±0.45 mm (int. ±0.76 mm)	±0.45 mm (int. ±0.76 mm)	±0.45 mm (int. ±0.76 mm)
Thickness of Strap	0.55–1.27 mm	0.55–1.27 mm	0.55–1.27 mm	0.55–1.27 mm
Thickness Tolerance	±0.05 mm (int. ±0.06 mm)	±0.05 mm (int. ±0.06 mm)	±0.05 mm (int. ±0.06 mm)	±0.05 mm (int. ±0.06 mm)
Elongation Rate of Strap	10–15%	10–15%	10–15%	10–15%
Breaking Strength of Strap	< 50 kg/mm²	< 50 kg/mm²	< 50 kg/mm²	< 50 kg/mm²
