EPE FOAM PIPE OR ROD EXTRUSION MACHINE

Introduction

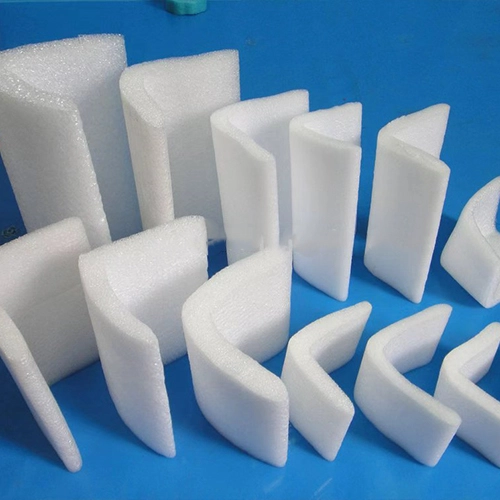

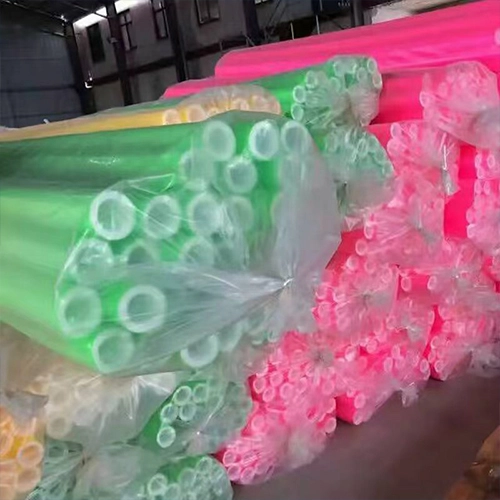

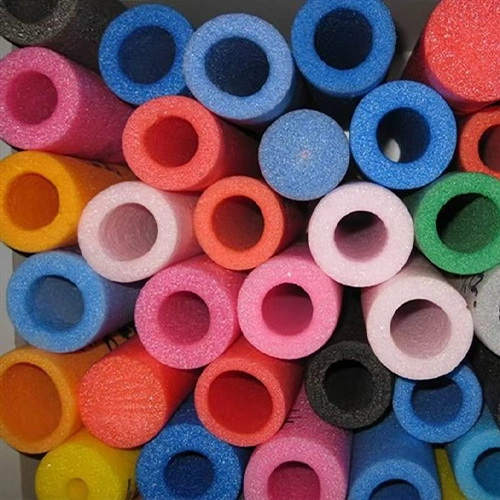

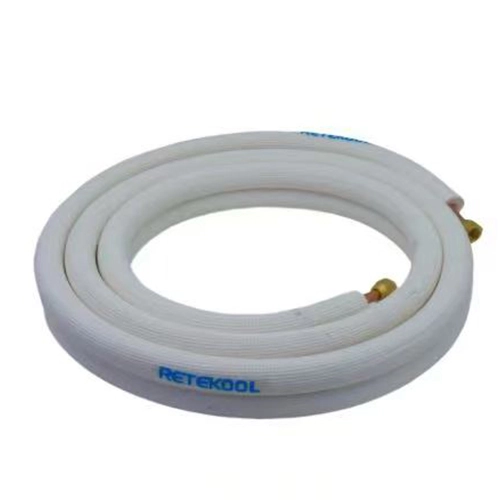

The tube/rod machine can produce various types of pearl cotton products such as tubular shape, rod shape, U-shaped, E-shaped, L-shaped retaining angle, mouth shape, polygon, etc. The tube has high expansion ratio, good elasticity and good thermal insulation performance. EPE foaming rods are widely used in the shaping, filling and decoration of mattresses, sofa stalks, car seats, sofa backs and high-end garments; they are also used in stone glass curtain walls, airport runways, bridge plugs for their excellent resilience. In addition, air-conditioning insulation pipes, pipe insulation, guardrails for entertainment facilities, as well as children's toys, sports fitness equipment and fisheries, etc.

Parameters

Model	Screw Diameter (mm)	Tube Outer Diameter (mm)	Rod Diameter (mm)	Output (kg/h)	Installed Capacity (kW)	Dimension (L×W×H, m)
EFP-75	75	10-60	6-38	20-40	55	16×1.3×1.7
EFP-90	90	20-80	6-50	30-70	80	18×1.6×1.7
EFP-105	105	20-100	10-80	40-100	90	25×1.8×1.8
EFP-120	120	30-120	30-90	50-150	110	28×2.5×2.3
EFP-135	135	40-140	40-100	70-180	150	30×1.3×1.7
EFP-150	150	50-160	50-110	90-200	200	35×1.6×1.7
EFP-180	180	60-180	60-130	100-260	400	38×1.8×1.8
EFP-200	200	70-200	80-135	120-300	450	45×2.5×2.3
